Gizmo
Condition Monitoring - Complete
Temperature and Vibration Monitoring
Solution. |
|
| |
|
|
| |
GizmoCM is a GUI
application for monitoring, collecting, and
storing temperature and vibration data from
industrial equipment. The two main
indicators of failure in bearings and other
industrial equipment is temperature and
vibration. By monitoring these
indicators and trending them over time you
can see changes and take action before
failure occurs. And possibly see other
interesting information never seen before. |
|
| |
|
|
| |
 |
|
- Easy installation. Just download and unpack to
directories |
|
- Read and log temperature and vibration data |
|
- Graph data and trend it using
collected data |
|
- Set high alarm levels receive e-mails/text
messages if in alarm state |
|
- Write temperature data to AB PLC 5, PLC 500, PLC 5000 |
|
- Historical data views and graphs, store and view
years of data |
|
- Easy to use
Web User interface, Remote viewing and control |
|
- Overview screen to quickly identify problem
areas |
|
|
| |
|
|
| |
|
|
| |
This complete package
gives the user an easy to use interface,
temperature and vibration logging, graphing,
historical views, and alarm e-mail/text
messages. The interface allows the user to
name each sensor and give it a alarm set
level. The user can then define things like
e-mail settings, where the data should
output, setup sensors, run the monitoring
scripts and view data logs. There are
also modules for controlling the scan time,
starting and stopping GizmoCM
tasks, viewing historical data, database
maintenance and more. The program will
automatically use up to 10 temperature
sensors and 4 vibration sensors.
GizmoCM uses 1-wire temperature sensors to collect
temperature data, and 3 axis accelerometers
to collect vibration data. All use
serial communication so the setup is easy.
All temperature sensors tie back to 1 serial
port using a 1-wire to serial adapter.
Each vibration sensor needs it own line and
serial port.
This is a proven
system that has been functioning in plant
sites for years. For more information
Contact Us. |
|
| |
|
|
| |
|
|
| |
Screen Shots: |
|
| |
|
|
| |
 |
|
 |
|
| |

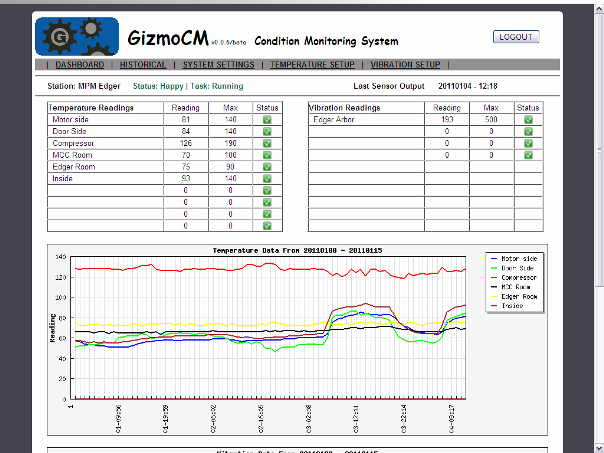

GizmoCM main
dashboard screen. |
|

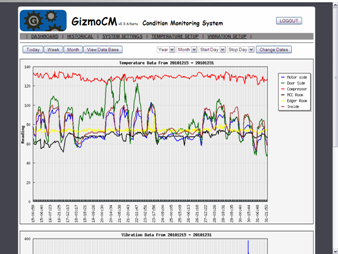

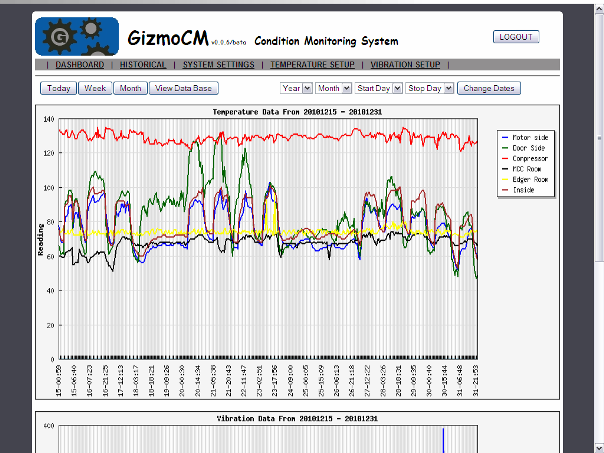

Historical view
showing trend data |
|
| |
|
|
|
|
| |
|
|
|
|
| |
 |
|
 |
|
| |

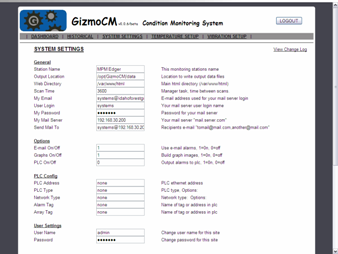

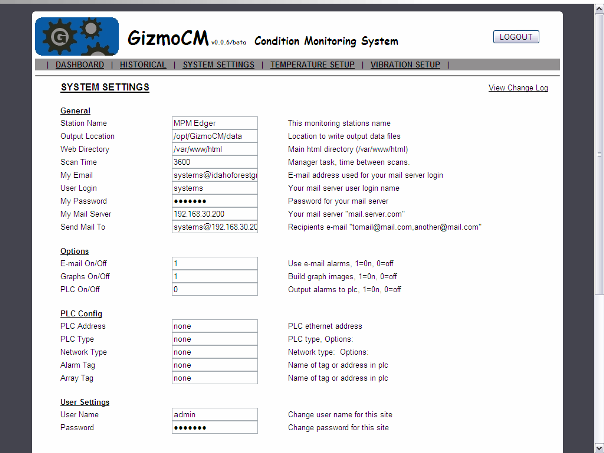

Editing main
system settings |
|

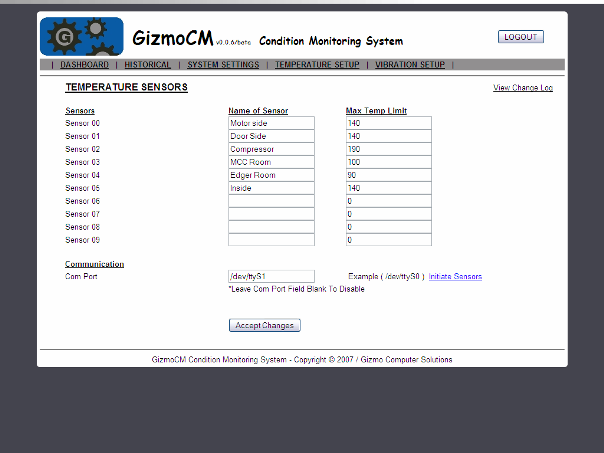

Setting up temperature
sensors |
|
| |
|
|
| |
|
|
|
|
| |
Compatible
Temp Adapters: Dallas DS9097U-SO9 (--or--) ibuttonlink LINK45
Compatible
Temp Sensors: DS1820, DS18B20,
DS18S20, DS2438-temp only
Compatible Vib Sensors: SparkFun
SEN-00248 |
|
| |
|
|
| |
|
|
|
|
|
